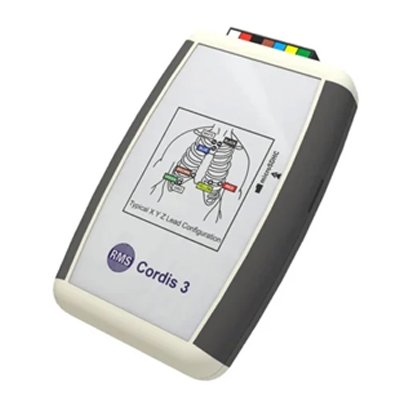

ECG Holter Monitor 3 Channel (RMS)
The recorder and analysis software is included in the RMS 3 Channel ECG Holter Monitor 24 hours. A recorder is a simple device that catches synchronous 3-lead ECG waveforms and records them continuously for 24 hours. QRS search may be more precise with 3 leads synchro analysis, and the RMS 3 Channel ECG Holter Monitor 24 hours can practically identify all abnormal waveforms. It's a flexible atrial fibrillation analysis that allows doctors to perform complete, segmented automated, and manual atrial fibrillation analysis, making the process faster and more accurate.
FEATURES
- 3 Channel ECG Holter monitoring
- 24 hrs recording on latest SDHC Cards
- LED indication for data storage/device status
- Works on 2 nos of 1.5V (AA) LR6 Alkaline batteries
- Pacemaker Detection
- Full Disclosure Display
- Template Editing
- ST analysis with 3D Graph
- QTC Analysis
- Sleep Apnea Analysis
- PDF Generation & Email facility
PRODUCT SPECIFICATIONS
| Recording channels | 3 channels |
| Leads | 7 |
| Storage | SDHC card (4 GB) |
| Storage indication | LED indication |
| Event marking | Event button |
| Recording | Full information without compressing |
| Duration | 24 hrs |
| Dimension | 120x77x24 mm |
| Power supply | Alkaline battery 1.5v(AA)LR6 -2 Nos |
Analyzer
- 3 lead arrhythmia analysis
- Multiple template editing to analyze VE, SVE, ETC.
- Heart rate variability with 3D spectral
- Hourly count menu
- Atria fibrillation/ Flutter scanning
- Pacemaker auto-detection and analysis
- Search function based on arrhythmia type
- QT analysis
- ST analysis
- ASCII output
CONTENT OF BOX
- Recorder pouch
- Shoulder belt
- Waist belt
- Electrodes
- SDHC card and reader
- Patient cable
